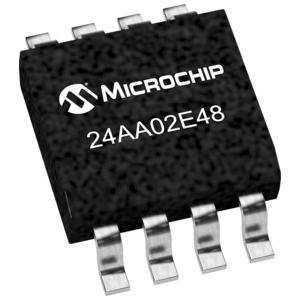

The Microchip Technology Inc. 24AA02E48 is a 2Kb Serial EEPROM with pre-programmed EUI-48 MAC address. The device is organized as two blocks of 128 x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V, with maximum standby and active currents of only 1 μA and 1 mA, respectively. The 24AA02E48 also has a page write capability for up to 8 bytes of data. The 24AA02E48 is available in the standard 8-pin SOIC and 5-lead SOT-23 packages.

  Pre-programmed Globally Unique, 48-bit Node Address

  Compatible with EUI-48? and EUI-64?

  Single Supply with Operation Down to 1.7V

  Low-Power CMOS Technology:- Read current 1 mA, max.- Standby current 1 μA, max.

  2-Wire Serial Interface, I2C? Compatible

  Schmitt Trigger Inputs for Noise Suppression

  Output Slope Control to Eliminate Ground Bounce

  100 kHz and 400 kHz Clock Compatibility

  Page Write Time 3 ms, typical

  Self-Timed Erase/Write Cycle

  8-Byte Page Write Buffer

  ESD Protection >4,000V

  More than 1 Million Erase/Write Cycles

  Data Retention >200 Years

  Factory Programming Available

  Packages include 8-lead SOIC and 5-lead SOT-23

  Pb-free and RoHS Compliant

  Temperature Ranges:- Industrial (I): -40°C to +85°C
