The AIS1120SX / AIS2120SX is a central acceleration sensor with a single or dual axis sensing element and an IC interface able to provide acceleration information to a master control unit via an SPI protocol.

The sensing element, capable of detecting the acceleration, is manufactured using a dedicated process developed by ST to produce inertial sensors and actuators in silicon.

The IC interface is manufactured using a BCD process that allows a high level of integration. The device is factory trimmed to better tune the characteristics of the sensing element with the acceleration information to be supplied.

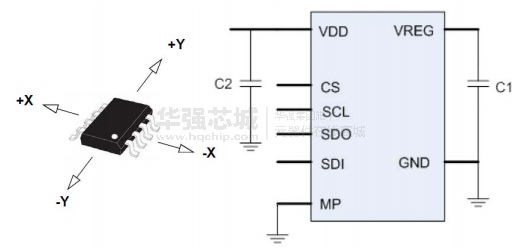

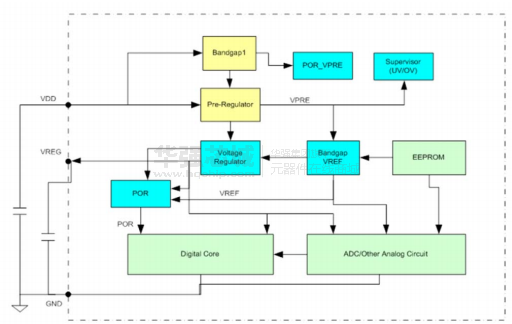

The AIS1120SX / AIS2120SX has a full scale of ±120 g. The acquisition chain consists of a C/V converter, a full-differential charge amplifier, a 2nd order ΣΔ analog-to-digital converter and a digital core, which includes filtering, compensation and interpolation, control logic and SPI protocol generation.

The differential capacitance of the sensor is proportional to the proof mass displacement; thus, by sensing the differential capacitance, the position of the sensor is determined. Then, since the mass position is known, and the position is related to the input acceleration, the input acceleration can be easily deduced.

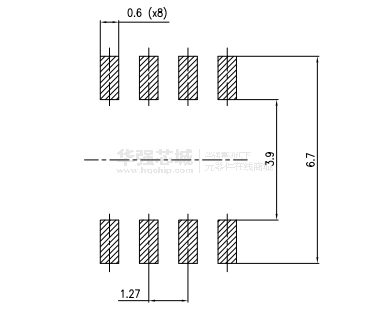

The device is available in a plastic SOIC8 package and is guaranteed to operate over a temperature range extending from -40°C to +105°C.

ais1120sx / ais2120sx是一個單軸或雙軸傳感元件和一個集成電路接口能夠通過SPI協議的主控制單元提供加速度信息中心加速度傳感器。

的傳感元件，能夠檢測的加速度，使用一個專門的過程開發的由圣生產的慣性傳感器和致動器在硅中使用。

該IC接口使用BCD工藝，允許高層次的集成制造。該設備是工廠修剪，以更好地調整的特點，傳感元件的加速度信息提供。

ais1120sx / ais2120sx有一個全面的±120 g，采集鏈由一個C / V轉換器，全差分電荷放大器、一個第二階ΣΔ模數轉換器和數字核心，包括濾波、補償和插值、控制邏輯和SPI協議生成

傳感器的差動電容與防爆質量位移成正比，因此，通過對差動電容的檢測，確定傳感器的位置。然后，由于質量的位置是已知的，和位置相關的輸入加速度，可以很容易地推導出的輸入加速度。

該裝置可在一個塑料SOIC8封裝，保證工作在擴展溫度范圍從- 40°C + 105°C.

Key Features

• 3.3 V single supply operation

• 14-bit data output

• ±120 g full scale

• Slow and fast offset cancellation

• Embedded self-test

• Selectable low-pass filter

• SPI interface

• Automotive AEC-Q100 qualified

• ECOPACK^?compliant

• Extended temperature range -40 °C to +105 °C

主要特點

3.3伏單電源供電

14位數據輸出

120克全量表

慢速和快速抵消取消

嵌入式自測試

可選擇低通濾波器

SPI接口

汽車AEC-Q100認證

?符合ECOPACK

擴展溫度范圍為40°～±105°
