The EMC1053 is a System Management Bus (SMBus) temperature sensor that monitors three temperature zones, one internal diode and two externally connected diodes, for PC and embedded environments. The EMC1053 includes resistance error correction and ideality factor configuration to eliminate major sources of temperature measurement error1.
An added feature to the EMC1053 is a function that automatically compares the two external temperature zones and reports the hotter of the two temperatures. Selectable conversion rates and standby mode support low-power operation. The temperature measurement ranges support two data ranges (and formats), -64°C to +127°C and -64°C to +191°C.
1. Patents pending.
Features
Supports two External Temperature Diodes
±1.0°C Accuracy (40°C to 80°C)
0.125°C Resolution
Ideality Factor Configuration
Accepts 2200pF Cap Across External Diodes for Noise Suppression
Optional Resistive Error Correction on External Diode 2
Resistance Error Correction (up to 100 Ohms)
Selectable Beta Compensation for Substrate Diodes
Internal Temperature Diode
±3.0°C Accuracy (0°C to 85°C)
0.125°C resolution
Low Power Operation
4uA Standby Current
3.0V to 3.6V Supply
Programmable Conversion Rate
SMBus 2.0 Compliant
Reports Hotter of Two Diodes with Dual-core CPU
Applications
Desktop and Notebook Computers
Hardware Management
Servers
Embedded Applications

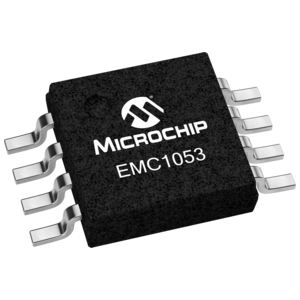

EMC1053 封裝圖
| 型號 | 制造商 | 描述 | 購買 |
|---|---|---|---|
| EMC1053-2-ACZL-TR | TE Connectivity Passive Product | 貼片電阻 0402 5.11KΩ ±0.1% 1/16W ±25ppm/℃ | 立即購買 |
| EMC1053-4-ACZL-TR | - | - | 立即購買 |
| EMC1053-3-ACZL-TR | TI | 低噪聲高帶寬 PSRR、低壓降 150mA 線性穩壓器 6-WSON -40 to 125 | 立即購買 |
| EMC1053-1-ACZL-TR | - | - | 立即購買 |
