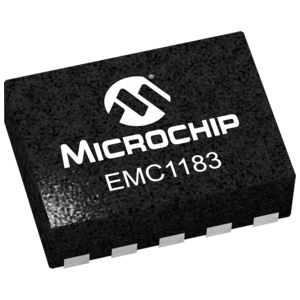

The EMC1183 is a high accuracy, low cost, I2C/SMBus triple channel temperature sensor. Advanced features such as Resistance Error Correction (REC), Beta Compensation (to support CPU diodes requiring the BJT/transistor model) and automatic diode type detection combine to provide a robust solution for complex environmental monitoring applications.

The EMC1183 monitors three temperature channels (two external and one internal). It provides ±1°C accuracy for both external and internal diode temperatures.? Frequency hopping and analog filtering ensure remote diode traces can be as far as 8 inches without degrading the signal.

  Compatible with 1.8V logic

  Support for diodes requiring the BJT/transistor model

  supports 65nm and lower geometry CPU thermal diodes

  Automatically determines external diode type and optimal settings

  Resistance Error Correction

  Frequency hops the remote sample frequency to rejectDC converter and other coherent noise sources

  Two External Temperature Monitors

  ±0.25 typ, ±1°C max accuracy (20°C < TDIODE < 110°C)

  0.125°C resolution

  Supports up to 2.2nF diode filter capacitor

  Internal Temperature Monitor

  ±0.25 typ, ±1°C max accuracy

  0.125°C resolution

  Programmable temperature limits for ALERT# and THERM#

  Programmable and fixed address options

  3.3V supply voltage

  Available in small 8-pin 2mm x 3mm TDFN lead-free RoHS compliant package

  Available in small 8-pin 3mm x 3mm DFN lead-free RoHS compliant package

Applications

  Notebook Computers

  Tablets

  Smartphone

  Embedded applications
