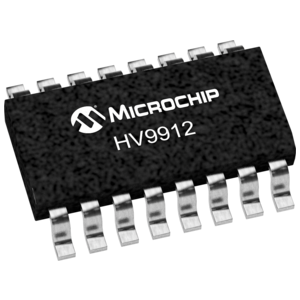

The HV9912 is a current mode control LED driver IC designed to control single switch PWM converters (buck, boost, buck-boost or SEPIC) in a constant frequency mode. The controller uses a peak current-mode control scheme with programmable slope compensation and includes an internal transconductance amplifier to control the output current in closed loop enabling high output current accuracy (in the case of buck and buck-boost converters, the output current can be sensed using a high side current sensor like the HV7800). In the constant frequency mode, multiple HV9912 ICs can by synchronized to each other or to an external clock using the SYNC pin. Programmable MOSFET current limit enables current limiting during input under voltage and output overload conditions. The IC also includes a 0.2A source and 0.4A sink gate driver that makes the HV9912 suitable for high power applications. An internal 90V linear regulator powers the IC eliminating the need for a separate power supply for the IC. The IC also provides a FAULT output, which can be used to disconnect the LEDs in case of a fault condition using an external disconnect FET. HV9912 also provides a TTL compatible, low-frequency PWM dimming input that can accept an external control signal with a duty ratio of 0-100% and a frequency of up to a few kilohertz. The HV9912 includes hiccup protection from both short and open circuits, with automatic recovery after the fault condition is cleared. The HV9912 is a pin compatible replacement toHV9911. It is compatible with existing HV9911 designs which have an input voltage of less than 90V by changing ROVP1, ROVP, and RT.

  Switch mode controller for single switch drivers

   ? Buck

   ? Boost

   ? Buck-boost and SEPIC

  Works with high side current sensors

  Closed loop control of output current

  High PWM dimming ratio

  Internal 90V linear regulator (can be extended using external Zener diodes)

  Internal 2% voltage reference (0°C

  Constant frequency operation

  Programmable slope compensation

  Linear & PWM dimming

  +0.2A/-0.4A gate drive

  Hiccup mode protection for both short circuit and open circuit conditions

  Synchronization capability

  Pin compatible with HV9911
