The L3G3IS is a three-axis MEMS gyroscope for optical image stabilization applications.

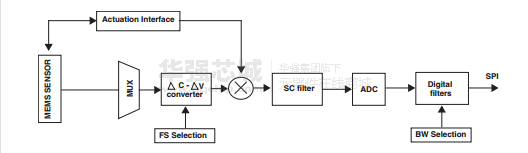

It includes a sensing element and an IC interface capable of providing the measured angular rate to the external world through an SPI digital interface.

The unique sensing element is manufactured using a dedicated micromachining process developed by STMicroelectronics to produce inertial sensors and actuators on silicon wafers.

The IC interface is manufactured using a CMOS process that allows a high level of integration to design a dedicated circuit which is trimmed to better match the sensing element characteristics.

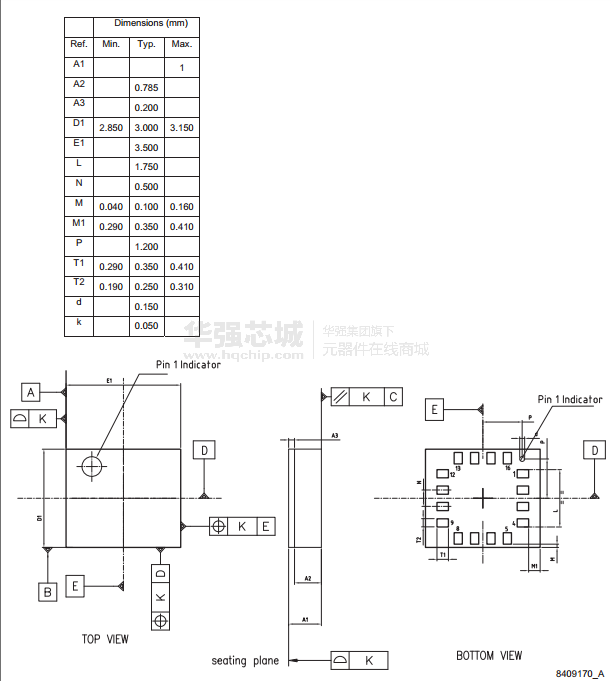

The L3G3IS is available in a plastic land grid array (LGA) package and can operate over a temperature range of -40 °C to +85 °C.

l3g3is光學圖像穩定應用三軸MEMS陀螺儀。

它包括一個傳感元件和一個能通過一個SPI數字接口到外部世界提供測量的角速率接口。

獨特的傳感元件是使用專用的微加工工藝由意法半導體硅片生產慣性傳感器和執行器的制造。

IC接口是使用CMOS工藝，允許高層次的集成設計專用電路，修整，以更好地匹配傳感元件特性制造。

在一個塑料的l3g3is柵格陣列（LGA）封裝，可能在一個溫度范圍-操作40°C + 85°C.

Key Features

• ±65 dps / ±130 dps full-scale range

• SPI digital interface

• Embedded temperature sensor

• Integrated low- and high-pass filters with user-selectable bandwidth

• Wide supply voltage range: 2.4 V to 3.6 V

• Low-voltage compatible IOs (1.8 V)

• Power-down and sleep modes for smart power saving

• ECOPACK^?, RoHS and “Green” compliant

主要特點

±65 DPS /±130 DPS的滿量程范圍

SPI數字接口

嵌入式溫度傳感器

集成低通和高通濾波器，用戶可選擇帶寬

寬電源電壓范圍：2.4伏至3.6伏

低電壓（1.8 V）兼容iOS

智能節電的掉電模式

?Ecopack，ROHS和“綠色”標準
