The LF298 and LFx98x devices are monolithic sample-and-hold circuits that use BI-FET technology to obtain ultrahigh DC accuracy with fast acquisition of signal and low droop rate. Operating as a unity-gain follower, DC gain accuracy is 0.002% typical and acquisition time is as low as 6 μs to 0.01%. A bipolar input stage is used to achieve low offset voltage and wide bandwidth. Input offset adjust is accomplished with a single pin and does not degrade input offset drift. The wide bandwidth allows the LF198-N to be included inside the feedback loop of 1-MHz operational amplifiers without having stability problems. Input impedance of 1010 Ω allows high-source impedances to be used without degrading accuracy.
P-channel junction FETs are combined with bipolar devices in the output amplifier to give droop rates as low as 5 mV/min with a 1-μF hold capacitor. The JFETs have much lower noise than MOS devices used in previous designs and do not exhibit high temperature instabilities. The overall design ensures no feedthrough from input to output in the hold mode, even for input signals equal to the supply voltages.
Logic inputs on the LF198-N are fully differential with low input current, allowing for direct connection to TTL, PMOS, and CMOS. Differential threshold is
1.4 V. The LF198-N will operate from ±5-V to ±18-V supplies.
An A version is available with tightened electrical specifications.
Operates from ±5-V to ±18-V Supplies
Less than 10-μs Acquisition Time
Logic Input Compatible With TTL, PMOS, CMOS
0.5-mV Typical Hold Step at Ch = 0.01 μF
Low Input Offset
0.002% Gain Accuracy
Low Output Noise in Hold Mode
Input Characteristics Do Not Change During Hold Mode
High Supply Rejection Ratio in Sample or Hold
Wide Bandwidth
Space Qualified, JM38510





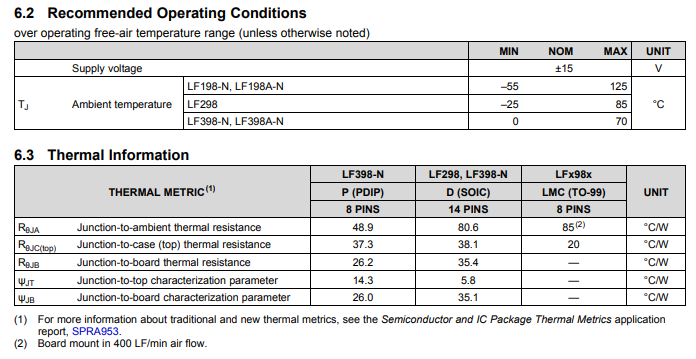

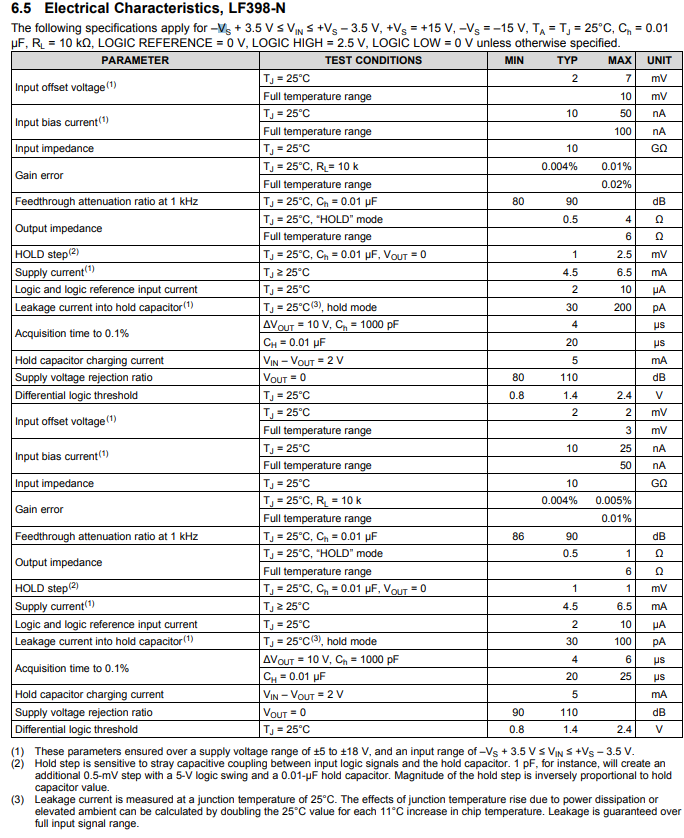

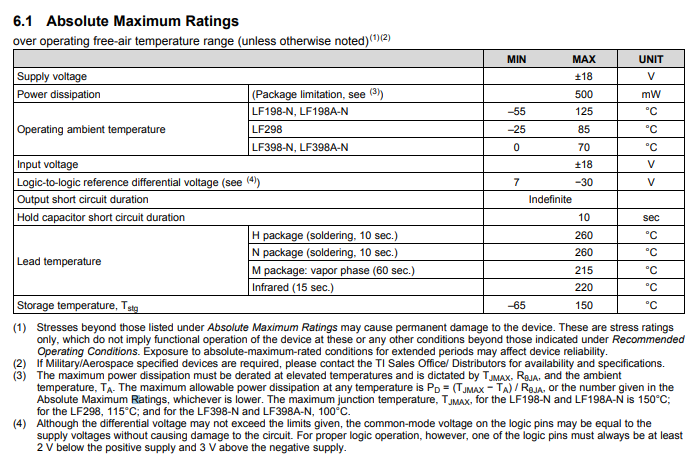

LF398-N 封裝圖

LF398-N 封裝圖

LF398-N電路圖

LF398-N 引腳圖
| 型號 | 制造商 | 描述 | 購買 |
|---|---|---|---|
| LF398N/NOPB | TI | LF398-N 單片采樣保持電路(10μs 采集,7mV 失調電壓) | 立即購買 |
| LF398M | TI | 立即購買 | |
| LF398AN/NOPB | TI | 采樣和保持 放大器 1 電路 8DIP | 立即購買 |
| LF398M/NOPB | TI | LF398-N 單片采樣保持電路(10μs 采集,7mV 失調電壓) | 立即購買 |
| LF398MX/NOPB | TI | LF398-N 單片采樣保持電路(10μs 采集,7mV 失調電壓) | 立即購買 |
| ? | - | - | 立即購買 |
峰值電壓采樣保持電路:峰值電壓采樣保持電路如圖12-50所示。峰值電壓采樣保持電路南一片采樣保持器芯片LF398和一塊電壓比較器LM311構成。LF398的輸出電壓和輸入電壓通過LM3J1進行比較t當U.》Uo時.
