MC74VHC257

購買收藏

?Quad 2-Channel Multiplexer with 3-State Outputs

制造商：ON

中文數據手冊

產品信息

The MC74VHC257 is an advanced high speed CMOS quad 2-channel multiplexer fabricated with silicon gate CMOS technology. It achieves high speed operation similar to equivalent Bipolar Schottky TTL while maintaining CMOS low power dissipation.
It consists of four 2-input digital multiplexers with common select (S) and enable (OE)bar inputs. When (OE)bar is held High, selection of data is inhibited and all the outputs go Low.
The select decoding determines whether the A or B inputs get routed to the corresponding Y outputs.
The internal circuit is composed of three stages, including a buffer output which provides high noise immunity and stable output. The inputs tolerate voltages up to 7V, allowing the interface of 5V systems to 3V systems.

High Speed: t
= 4.1ns (Typ) at V
= 5V
Low Power Dissipation: I
= 4
A (Max) at T
= 25°C
High Noise Immunity: V
= V
= 28% V
Power Down Protection Provided on Inputs
Balanced Propagation Delays
Designed for 2V to 5.5V Operating Range
Low Noise: V
= 0.8V (Max)
Pin and Function Compatible with Other Standard Logic Families
Latchup Performance Exceeds 300mA
ESD Performance: HBM > 2000V; Machine Model > 200V
Chip Complexity: FETs = 100; Equivalent Gates = 25
These devices are available in Pb-free package(s). Specifications herein apply to both standard and Pb-free devices. Please see our website at www.onsemi.com for specific Pb-free orderable part numbers, or contact your local ON Semiconductor sales office or representative.

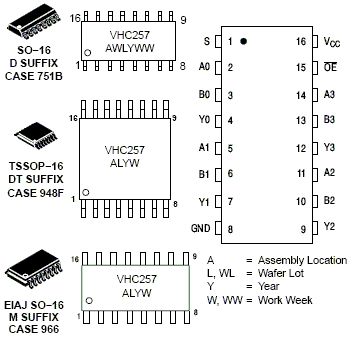

電路圖、引腳圖和封裝圖

MC74VHC257電路圖

在線購買

型號	制造商	描述	購買
MC74VHC257DTG	ON	IC MULTIPLEXER 4 X 2:1 16TSSOP	立即購買
MC74VHC257DTR2G	ON	IC MULTIPLEXER 4 X 2:1 16TSSOP	立即購買
MC74VHC257DG	ON	IC MULTIPLEXER 4 X 2:1 16SOIC	立即購買
MC74VHC257DR2G	ON	IC MULTIPLEXER 4 X 2:1 16SOIC	立即購買

技術資料

標題	類型	大?。↘B）	下載
Quad 2-Channel Multiplexer with 3-State Outputs	PDF	92	點擊下載
SOIC 16 LEAD	PDF	37	點擊下載
TSSOP-16	PDF	40	點擊下載
MC74VHC257_PKG.GIF	UNKNOW	10	點擊下載
