The NCP1729 is a CMOS charge pump voltage inverter that is designed for operation over an input voltage range of 1.15 V to 5.5 V with an output current capability in excess of 50 mA. The operating current consumption is only 122 μA, and a power saving shutdown input is provided to further reduce the current to a mere 0.4 μA. The device contains a 35 kHz oscillator that drives four low resistance MOSFET switches, yielding a low output resistance of 26 Ω and a voltage conversion efficiency of 99%. This device requires only two external 3.3μF capacitors for a complete inverter making it an ideal solution for numerous battery powered and board level applications. The NCP1729 is available in the space saving TSOP-6 (SOT-23-6) package.

Typical Applications

? LCD Panel Bias

? Cellular Telephones

 ? Pagers

 ? Personal Digital Assistants

? Electronic Games

? Digital Cameras

? Camcorders

 ? Hand Held Instruments

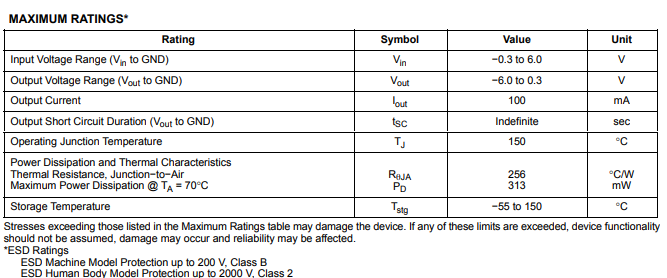

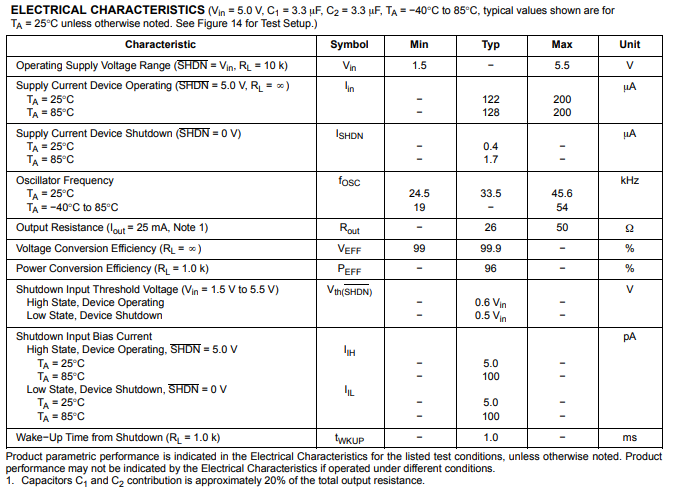

? Operating Voltage Range of 1.5 V to 5.5 V

? Output Current Capability in Excess of 50 mA

 ? Low Current Consumption of 122 A

 ? Power Saving Shutdown Input for a Reduced Current of 0.4 A

 ? Operation at 35 kHz

? Low Output Resistance of 26

 ? Space Saving TSOP?6 Package

 ? NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC?Q100 Qualified and PPAP Capable

 ? These Devices are Pb?Free and are RoHS Compliant
