The SST49LF080A flash memory device is designed to interface with the LPC bus for PC and Internet Appliance application in compliance with Intel Low Pin Count (LPC) Interface Specification 1.0. Two interface modes are supported: LPC mode for in-system operations and Parallel Programming (PP) mode to interface with programming equipment. The SST49LF080A flash memory device is manufactured with SST's proprietary, high-performance SuperFlash Technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches.

   LPC Interface Flash– SST49LF080A: 1024K x8 (8 Mbit)

   Conforms to Intel LPC Interface Specification 1.0

   Flexible Erase Capability– Uniform 4 KByte Sectors– Uniform 64 KByte overlay blocks– 64 KByte Top Boot Block protection– Chip-Erase for PP Mode Only

   Single 3.0-3.6V Read and Write Operations

   Superior Reliability– Endurance: 100,000 Cycles (typical)– Greater than 100 years Data Retention

   Low Power Consumption– Active Read Current: 6 mA (typical)– Standby Current: 10 μA (typical)

   Fast Sector-Erase/Byte-Program Operation– Sector-Erase Time: 18 ms (typical)– Block-Erase Time: 18 ms (typical)– Chip-Erase Time: 70 ms (typical)– Byte-Program Time: 14 μs (typical)– Chip Rewrite Time: 16 seconds (typical)– Single-pulse Program or Erase– Internal timing generation

   Two Operational Modes– Low Pin Count (LPC) Interface mode forin-system operation– Parallel Programming (PP) Mode for fast productionprogramming

   LPC Interface Mode– 5-signal communication interface supportingbyte Read and Write– 33 MHz clock frequency operation– WP# and TBL# pins provide hardware write protectfor entire chip and/or top boot block– Standard SDP Command Set– Data# Polling and Toggle Bit for End-of-Writedetection– 5 GPI pins for system design flexibility– 4 ID pins for multi-chip selection

   Parallel Programming (PP) Mode– 11-pin multiplexed address and 8-pin dataI/O interface– Supports fast programming In-System onprogrammer equipment

   CMOS and PCI I/O Compatibility

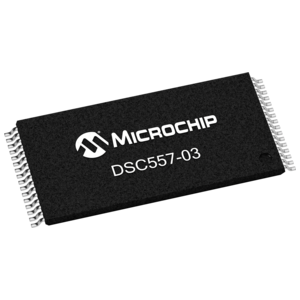

   Packages Available– 32-lead PLCC– 32-lead TSOP (8mm x 14mm)

   All non-Pb (lead-free) devices are RoHS compliant
