The STCN75 is a high-precision digital CMOS temperature sensor IC with a sigma-delta temperature-to-digital converter and an I²C-compatible serial digital interface. It is targeted for general applications such as personal computers, system thermal management, electronics equipment, and industrial controllers, and is packaged in the industry-standard 8-lead TSSOP package.

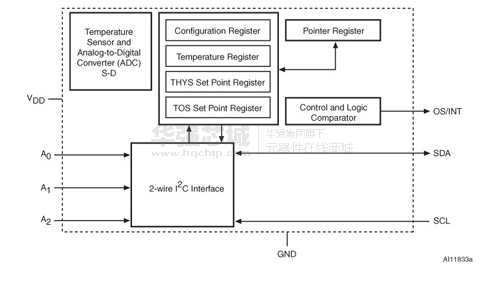

The device contains a bandgap temperature sensor and 9-bit ADC which monitor and digitize the temperature to a resolution up to 0.5 °C. The STCN75 is typically accurate to (±3 °C - max) over the full temperature measurement range of –55 °C to 125 °C with ±2 °C accuracy in the –25 °C to +100 °C range. The STCN75 is pin-for-pin and software compatible with the TCN75.

The STCN75 is specified for operating at supply voltages from 2.7 V to 5.5 V. Operating at 3.3 V, the supply current is typically (125 μA).

The onboard sigma-delta analog-to-digital converter (ADC) converts the measured temperature to a digital value that is calibrated in degrees centigrade; for Fahrenheit applications a lookup table or conversion routine is required.

The STCN75 is factory-calibrated and requires no external components to measure temperature.

stcn75是一個高精度的數字CMOS溫度傳感器IC采用∑-Δ溫度數字轉換器和一個I2C兼容串行數字接口。這是針對一般的應用，如個人電腦、熱管理系統、電子設備、工業控制器，并在包裝行業標準的8引腳TSSOP封裝

該器件包含一個帶溫度傳感器和9位ADC監測和數字化的溫度分辨率高達0.5°C. stcn75通常是準確的（±3°C max）在–55°C全溫度測量范圍為125°C 2 C±°精度在25°–C + 100°C系列。是的stcn75引腳對引腳和軟件兼容的TCN75。

是的stcn75操作電源電壓從2.7 V到5.5 V操作在3.3 V的電源電流通常是指定的，（125μ一）

板載的Sigma-Delta模數轉換器（ADC）轉換為數字值，測量的溫度是攝氏度校準；為華氏應用查找表或轉換程序是必需的。

是的stcn75工廠校準，不需要外部元件來測量溫度。

Key Features

• Measures temperatures from –55 °C to +125 °C (–67 °F to +257 °F)

• ±0.5 °C (typ) accuracy

• ±2 °C (max) accuracy from –25 °C to +100 °C

• Low operating current:125 μA (typ)

• No external components required

• 2-wire I²C/SMBus-compatible serial interface

• Selectable bus address allows connection of up to eight devices on the bus

• Wide power supply range - operating voltage range: 2.7 V to 5.5 V

• Conversion time is 45 ms (typ)

• Programmable temperature threshold and hysteresis set points

• Pin- and software-compatible with TCN75 (drop-in replacement)

• Power-up defaults permit standalone operation as a thermostat

• Shutdown mode to minimize power consumption

• Output pin (open drain) can be configured for interrupt or comparator/thermostat mode (dual purpose event pin)

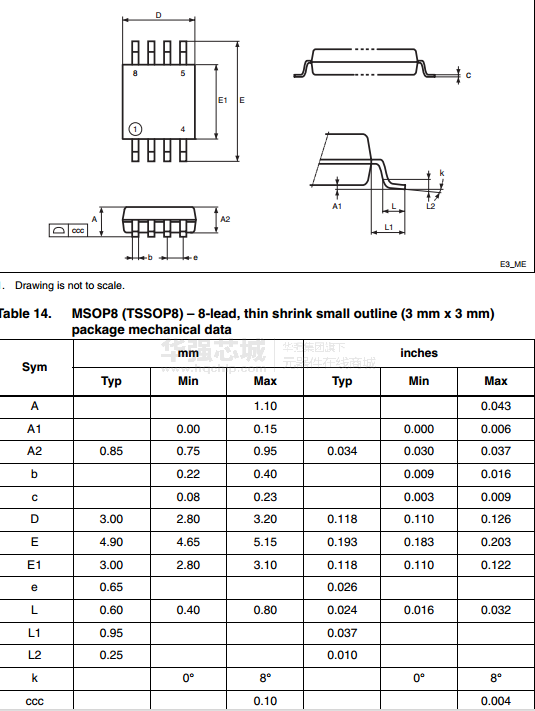

• MSOP8 (TSSOP8) package

主要特點

測量溫度從55°到125°（67°f）

±0.5°C（典型值）的精度

±2°C（最大）精度由- 25°為±100°

低工作電流：125μ一（典型值

無需外部元件

2線I2C和SMBus兼容串行接口

可選總線地址允許連接多達八個設備在總線上

電源電壓范圍：工作電壓范圍：2.7伏至5.5伏

轉換時間為45毫秒（典型值）

可編程溫度閾值和滯后集點

引腳和軟件兼容（TCN75下降的替代）

電源默認允許獨立運行作為一個溫控器

關機模式，以盡量減少電力消耗

輸出引腳（開漏）可以配置為中斷或比較器/溫控器模式（雙目的事件引腳）

MSOP8封裝（采用TSSOP8）
