For product comparison, please consider:
The TC4421/4422 are high current buffer/drivers capable of driving large MOSFETs and IGBTs. They are essentially immune to any form of upset except direct overvoltage or over-dissipation — they cannot be latched under any conditions within their power and voltage ratings; they are not subject to damage or improper operation when up to 5V of ground bounce is present on their ground terminals; they can accept, without either damage or logic upset, more than 1A inductive current of either polarity being forced back into their outputs. In addition, all terminals are fully protected against up to 4kV of electrostatic discharge. The TC4421/4422 inputs may be driven directly from either TTL or CMOS (3V to 18V). In addition, 300mV of hysteresis is built into the input, providing noise immunity and allowing the device to be driven from slowly rising or falling waveforms.
Tough CMOS ? Construction
High Peak Output Current: 9A
High Continuous Output Current: 2A Max
Fast Rise and Fall Times:
30nsec with 4,700pF Load
180nsec with 47,000pF Load
Short Internal Delays: 30nsec Typ.
Low Output Impedance: 1.4? Typ.

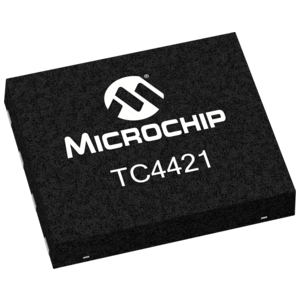

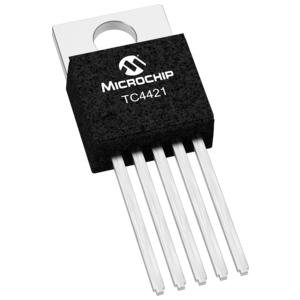

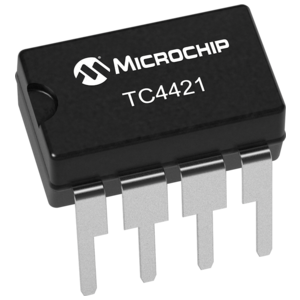

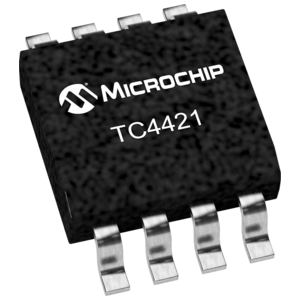

TC4421 封裝圖
TC4421 封裝圖
TC4421 封裝圖
TC4421 封裝圖
TC4421 封裝圖
TC4421 封裝圖
TC4421 封裝圖
TC4421 封裝圖
TC4421 封裝圖
TC4421 封裝圖
| 型號 | 制造商 | 描述 | 購買 |
|---|---|---|---|
| TC4421VMF | - | - | 立即購買 |
| TC4421VMF713 | Linear | IC TRPL SUPPLY MONITOR TSOT-23 | 立即購買 |
| TC4421ESM713 | - | - | 立即購買 |
| TC4421ESM | Linear | Supervisor Open Drain or Open Collector 3 Channel 8-DFN (3x2) | 立即購買 |
| TC4421VPA | - | - | 立即購買 |
| TC4421EPA | Maxim | IC RESET MPU W/ADJ RESET SOT23-8 | 立即購買 |
