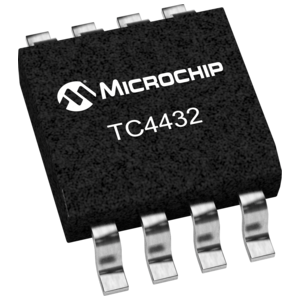

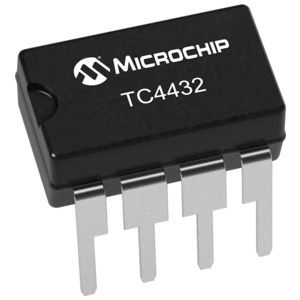

The TC4431/4432 are 30V CMOS buffer/drivers suitable for use in high-side driver applications. They will not latch up under any conditions within their power and voltage ratings. They can accept, without damage or logic upset, up to 300mA of reverse current (of either polarity) being forced back into their outputs. All terminals are fully protected against up to 4 kV of electrostatic discharge. Under-voltage lockout circuitry forces the output to a "low" state when the input supply voltage drops below 7V. For operation in lower voltages, disable the lockout and start-up circuit by grounding pin 3(LOCK DIS); for all other situations, pin 3 (LOCK DIS) should be left floating. The under-voltage lockout and start-up circuit gives brown out protection when driving MOSFETS.

  Wide Operating Range: 4.5V to 30V

  High Capacitive Load Drive Capability: 1000pF in 25nsec

  Short Delay Times:

  Low Supply Current

  With Logic "1" Input...............2.5mA

  With Logic "0" Input...............300 μA

  Low Output Impedance: 7? Typ.

  Latch-Up Protected: Will Withstand >0300mA

  Reverse Current

  ESD Protected: 4kV
