Microchip’s dsPIC33E family of digital signal controllers (DSCs) features a 70 MIPS dsPIC? DSC core with integrated DSP and enhanced on-chip peripherals. These DSCs enable the design of high-performance, precision motor control systems that are more energy efficient, quieter in operation, have a great range and extended life. They can be used to control brushless DC, permanent magnet synchronous, AC induction and stepper motors. These devices are also ideal for high-performance general purpose applications.
Operating Conditions3.0V to 3.6V, -40oC to +85oC, DC to 70 MIPS
3.0V to 3.6V, -40oC to +125oC, DC to 60 MIPS
dsPIC33E DSC CoreModified Harvard Architecture
C Compiler Optimized Instruction Set
16-bit Wide Data Path
24-bit Wide Instructions
16x16 Integer Multiply Operations
32/16 and 16/16 Integer Divide Operations
Two 40-bit Accumulators with Rounding and Saturation Options
Single-Cycle Multiply and Accumulate
Single-Cycle shifts for up to 40-bit Data
16x16 Fractional Multiply/Divide Operations
High-Speed PWMUp to three PWM pairs with independent timing
Dead time for rising and falling edges
7.14 ns PWM resolution
PWM support for:- Inverters, PFC, Lighting- BLDC, PMSM, ACIM, SRM
Programmable Fault inputs
Flexible trigger configurations for ADC conversions
Advanced Analog FeaturesADC module:- Configurable as 10-bit, 1.1 Msps with four S&H or 12-bit, 500 ksps with one S&H
Up to three Op amp/Comparators:- Op Amp direct connection to the ADC module- Additional dedicated comparator- Programmable references with 32 voltage points for comparators
Charge Time Measurement Unit (CTMU):- Supports mTouch? capacitive touch sensing
Timers/Output Compare/Input Capture12 general purpose timers:- Five 16-bit and up to two 32-bit timers/counters- Four OC modules configurable as timers/counters- PTG module with two configurable timers/counters- 32-bit Quadrature Encoder Interface (QEI) module configurable as a timer/counter
Four IC modules
Peripheral Trigger Generator (PTG) for scheduling complex sequences
Communication InterfacesTwo UART modules (15 Mbps)
Two 4-wire SPI modules (15 Mbps)
ECAN? module (1 Mbaud) CAN 2.0B support
Two I2C? modules (up to 1 Mbaud) with SMBus support
PPS to allow function remap
Programmable Cyclic Redundancy Check (CRC)
Direct Memory Access (DMA)4-channel DMA with user-selectable priority arbitration
UART, SPI, ADC, ECAN, IC, OC, and Timers

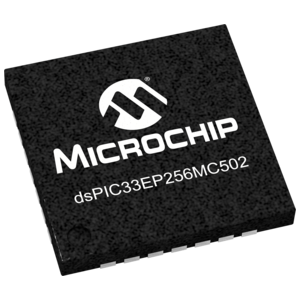

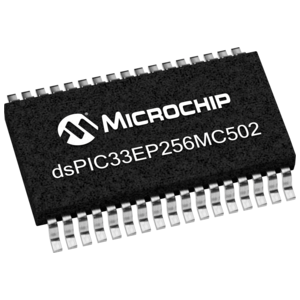

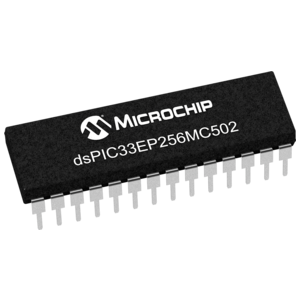

DSPIC33EP256MC502 封裝圖
DSPIC33EP256MC502 封裝圖
DSPIC33EP256MC502 封裝圖
DSPIC33EP256MC502 封裝圖
DSPIC33EP256MC502 封裝圖
DSPIC33EP256MC502 封裝圖
| 型號 | 制造商 | 描述 | 購買 |
|---|---|---|---|
| DSPIC33EP256MC502-E/SS | Microchip | 立即購買 | |
| DSPIC33EP256MC502T-I/MM | - | - | 立即購買 |
| DSPIC33EP256MC502-E/SP | - | - | 立即購買 |
| DSPIC33EP256MC502-E/MM | Silicon Labs | IC MCU 8BIT 32KB FLASH 32LQFP | 立即購買 |
| DSPIC33EP256MC502T-I/SS | Microchip | 立即購買 | |
| DSPIC33EP256MC502-I/SP | Harwin Inc. | 排針 間距:2.54mm 2x13P 直插 | 立即購買 |
