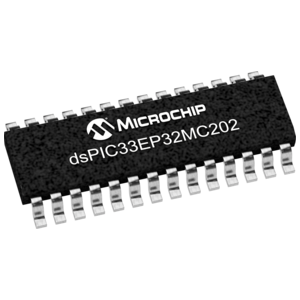

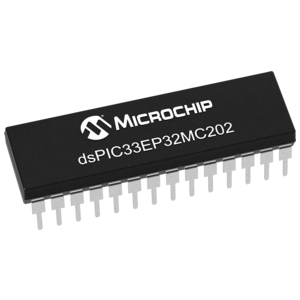

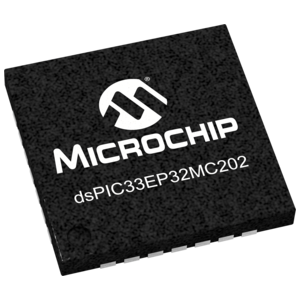

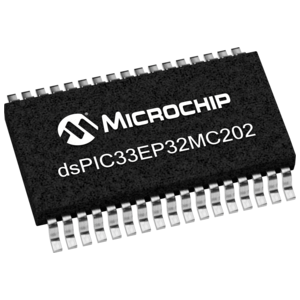

Microchip’s dsPIC33E family of digital signal controllers (DSCs) features a 70 MIPS dsPIC? DSC core with integrated DSP and enhanced on-chip peripherals. These DSCs enable the design of high-performance, precision motor control systems that are more energy efficient, quieter in operation, have a great range and extended life. They can be used to control brushless DC, permanent magnet synchronous, AC induction and stepper motors. These devices are also ideal for high-performance general purpose applications.

   3.0V to 3.6V, -40oC to +85oC, DC to 70 MIPS

   3.0V to 3.6V, -40oC to +125oC, DC to 60 MIPS

   Modified Harvard Architecture

   C Compiler Optimized Instruction Set

   16-bit Wide Data Path

   24-bit Wide Instructions

   16x16 Integer Multiply Operations

   32/16 and 16/16 Integer Divide Operations

   Two 40-bit Accumulators with Rounding and Saturation Options

   Single-Cycle Multiply and Accumulate

   Single-Cycle shifts for up to 40-bit Data

   16x16 Fractional Multiply/Divide Operations

   Up to three PWM pairs with independent timing

   Dead time for rising and falling edges

   7.14 ns PWM resolution

   PWM support for:- Inverters, PFC, Lighting- BLDC, PMSM, ACIM, SRM

   Programmable Fault inputs

   Flexible trigger configurations for ADC conversions

   ADC module:- Configurable as 10-bit, 1.1 Msps with four S&H or12-bit, 500 ksps with one S&H

   Up to three Op amp/Comparators:- Op Amp direct connection to the ADC module- Additional dedicated comparator- Programmable references with 32 voltage points for comparators

   Charge Time Measurement Unit (CTMU):- Supports mTouch? capacitive touch sensing

   12 general purpose timers:- Five 16-bit and up to two 32-bit timers/counters- Four OC modules configurable as timers/counters- PTG module with two configurable timers/counters- 32-bit Quadrature Encoder Interface (QEI) module configurable as a timer/counter

   Four IC modules

   Peripheral Trigger Generator (PTG) for scheduling complex sequences

   Two UART modules (15 Mbps)

   Two 4-wire SPI modules (15 Mbps)

   Two I2C? modules (up to 1 Mbaud) with SMBus support

   PPS to allow function remap

   Programmable Cyclic Redundancy Check (CRC)

   4-channel DMA with user-selectable priority arbitration

   UART, SPI, ADC, IC, OC, and Timers
