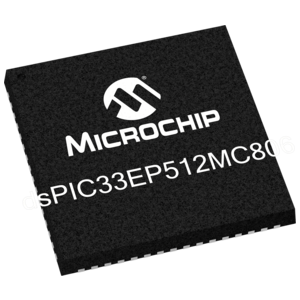

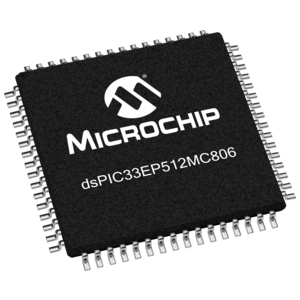

Microchip’s dsPIC33E family of digital signal controllers (DSCs) features a 70 MIPS dsPIC? DSC core with integrated DSP and enhanced on-chip peripherals. These DSCs enable the design of high-performance, precision motor control systems that are more energy efficient, quieter in operation, have a great range and extended life. They can be used to control brushless DC, permanent magnet synchronous, AC induction and stepper motors. These devices are also ideal for high-performance general purpose applications.

   3.0V to 3.6V, -40oC to +125oC, DC to 60 MIPS

   3.0V to 3.6V, -40oC to +85oC, DC to 70 MIPS

   Modified Harvard Architecture

   C Compiler Optimized Instruction Set

   16-bit Wide Data Path

   24-bit Wide Instructions

   16x16 Integer Multiply Operations

   32/16 and 16/16 Integer Divide Operations

   11 Additional Instructions

   Two 40-bit Accumulators with Rounding and Saturation Options

   Flexible and Powerful Addressing modes

   Single-Cycle Multiply and Accumulate

   Single-Cycle shifts for up to 40-bit Data

   16x16 Fractional Multiply/Divide Operations

   Two master time base modules can control dual 3-phase motorssimultaneously

   Up to seven PWM generators

   Two PWM outputs per PWM generator

   8.32 ns PWM resolution

   32-bit position counter

   32-bit Index pulse counter

   Two independent ADC modules:

   One ADC configurable as 10-bit, 1.1 Msps with four S&H or 12-bit, 500 ksps with one S&H

   One 10-bit ADC, 1.1 Msps with four S&H

   Eight S&H using both ADC 10-bit modules

   24 analog channels (64-pin devices) up to 32 analog channels (100/121/144-pin devices)

   Flexible and independent ADC trigger sources

   Comparators:

   Up to three Analog Comparator modules

  Programmable references with 32 voltage points

   9 16-bit Timers/Counters. Unused Output compares can be used as standardtimes for a total of 25 timers

   16 Input Capture

   16 Output Compare/ PWM

   Hardware Real-Time Clock and Calendar

   Peripheral Pin Select (PPS) to allow function remap

   15-channel DMA with user-selectable priority arbitration

   UART, SPI, ADC, ECAN, IC, OC, Timers, DCI/I2S, PMP
