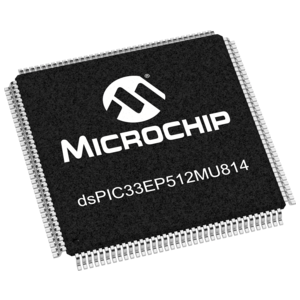

Microchip’s dsPIC33E family of digital signal controllers (DSCs) features a 70 MIPS dsPIC? DSC core with integrated DSP and enhanced on-chip peripherals. These DSCs enable the design of high-performance, precision motor control systems that are more energy efficient, quieter in operation, have a great range and extended life. They can be used to control brushless DC, permanent magnet synchronous, AC induction and stepper motors. These devices are also ideal for high-performance general purpose applications.

  3.0V to 3.6V, -40oC to +125oC, DC to 60 MIPS

  3.0V to 3.6V, -40oC to +85oC, DC to 70 MIPS

  Modified Harvard Architecture

  C Compiler Optimized Instruction Set

  16-bit Wide Data Path

  24-bit Wide Instructions

  16x16 Integer Multiply Operations

  32/16 and 16/16 Integer Divide Operations

  11 Additional Instructions

  Two 40-bit Accumulators with Rounding and Saturation Options

  Flexible and Powerful Addressing modes

  Single-Cycle Multiply and Accumulate

  Single-Cycle shifts for up to 40-bit Data

  16x16 Fractional Multiply/Divide Operations

  Two master time base modules can control dual 3-phase motors simultaneously

  Up to seven PWM generators

  Two PWM outputs per PWM generator

  8.32 ns PWM resolution

  32-bit position counter

  32-bit Index pulse counter

  Two independent ADC modules:

  One ADC configurable as 10-bit, 1.1 Msps with four S&H or 12-bit, 500 ksps withone S&H

  One 10-bit ADC, 1.1 Msps with four S&H

  Eight S&H using both ADC 10-bit modules

  24 analog channels (64-pin devices) up to 32 analog channels (100/121/144-pin devices)

  Flexible and independent ADC trigger sources

  Comparators:

  Up to three Analog Comparator modules

  Programmable references with 32 voltage points

  9 16-bit Timers/Counters. Unused Output compares can be used as standard times fora total of 25 timers

  16 Input Capture

  16 Output Compare/ PWM

  Hardware Real-Time Clock and Calendar

  Peripheral Pin Select (PPS) to allow function remap

  15-channel DMA with user-selectable priority arbitration

  UART, USB, SPI, ADC, ECAN, IC, OC, Timers, DCI/I2S, PMP
