The Microchip Technology Inc. 24AA02UID is a 2Kb Serial EEPROM with a pre-programmed, 32-bit unique ID. This serial number is unique across all UID-Family of EEPROMs. The ID is Scalable to 48-bit, 64-bit, 128-bit, 256-bit, and other lengths.The device is organized as two blocks of 128 x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V, with maximum standby and active currents of only 1 uA and 1 mA, respectively. The 24AA02UID also has a page write capability for up to 8 bytes of data. The 24AA02UID is available in the standard 8-pin PDIP, 8-pin SOIC, 5-lead SOT-23 packages.

  Pre-programmed 32-bit Serial Number

  Unique Across All UID-Family EEPROMs

  Scalable to 48-bit, 64-bit, 128-bit, 256-bit, and other lengths

  Single Supply with Operation Down to 1.7V

  Low-Power CMOS Technology: Read current 1 mA, max.; Standby current 1 uA, max.

  2-Wire Serial Interface, I2C? Compatible

  Schmitt Trigger Inputs for Noise Suppression

  Output Slope Control to Eliminate Ground Bounce

  100 kHz and 400 kHz Clock Compatibility

  Page Write Time 3 ms, typical

  Self-Timed Erase/Write Cycle

  Page Write Buffer:- 8-byte page

  ESD Protection >4,000V

  More than 1 Million Erase/Write Cycles

  Data Retention >200 Years

  Factory Programming Available

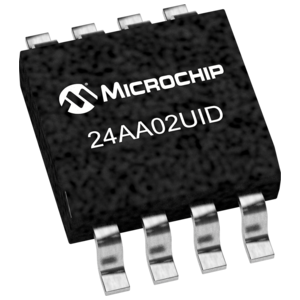

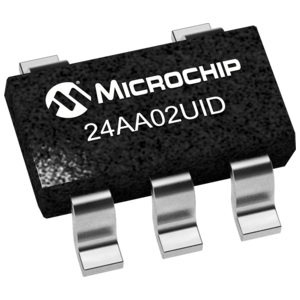

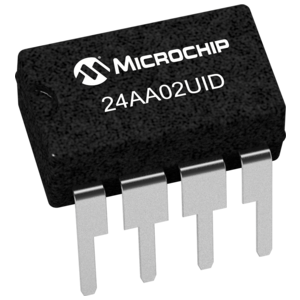

  Available Packages:- 8-lead PDIP, 8-lead SOIC, and 5-lead SOT-23

  Pb-free and RoHS Compliant

  Temperature Ranges:- Industrial (I): -40°C to +85°C
