The Microchip Technology Inc. 24VL014H is a 1Kb Serial EEPROM with operation down to 1.5V and half array write protection. The device is organized as a single block of 128 x 8-bit memory with a 2-wire serial interface. Low-current design permits operation with maximum standby and active currents of only 1 μA and 400 μA, respectively. The device has a page write capability for up to 16 bytes of data. Functional address lines allow the connection of up to eight 24VL014H devices on the same bus for up to 8 Kbits of contiguous EEPROM memory. The device is available in the standard 8-pin PDIP, 8-pin SOIC (150 mil), TSSOP, 2x3 TDFN and MSOP packages.
Single-Supply with Operation Down to 1.5V
Low-Power CMOS Technology:
2-Wire Serial Interface Bus, I2C? Compatible
Schmitt Trigger Inputs for Noise Suppression
Output Slope Control to Eliminate Ground Bounce
100 kHz and 400 kHz Compatibility
Page Write Buffer for up to 16 Bytes
Self-Timed Write Cycle (including Auto-Erase)
Hardware Write Protection for Half Array(40h-7Fh)
Cascadable up to Eight Devices
More than 1 Million Erase/Write Cycles
ESD Protection > 4,000V
Data Retention > 200 Years

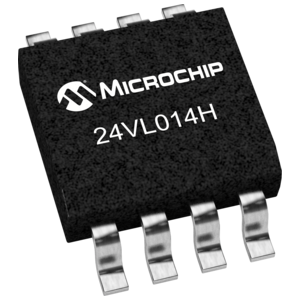

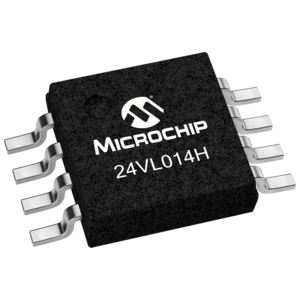

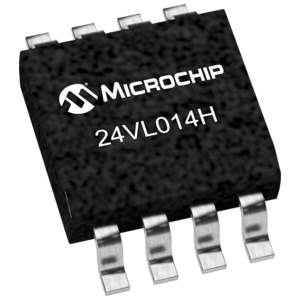

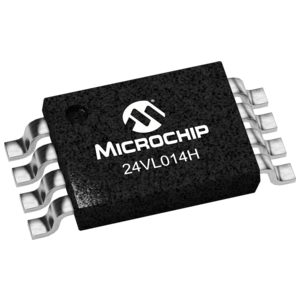

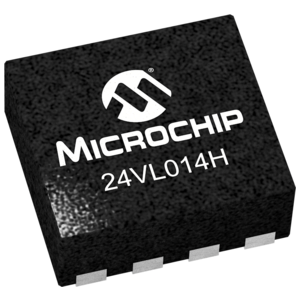

24VL014H 封裝圖
24VL014H 封裝圖
24VL014H 封裝圖
24VL014H 封裝圖
24VL014H 封裝圖
24VL014H 封裝圖
24VL014H 封裝圖
24VL014H 封裝圖
24VL014H 封裝圖
24VL014H 封裝圖
| 型號 | 制造商 | 描述 | 購買 |
|---|---|---|---|
| 24VL014H/MS | Abracon | 無源晶振 50Ω 7pF 37MHz ±20ppm -40℃~+85℃ SMD1612_4P | 立即購買 |
| 24VL014HT/SN | SUNTSU | 無源晶振 18pF 120Ω 13MHz ±50ppm -20℃~+70℃ SMD2520_4P | 立即購買 |
| 24VL014HT/MS | Conesys | CONN PLUG MALE 11POS GOLD CRIMP | 立即購買 |
| 24VL014HT/ST | TE | IDCCABLE-APK16A/AE16G/APK16A | 立即購買 |
| 24VL014HT/MNY | TE | IDCCABLE-AKN24A/AE24M/AKN24 | 立即購買 |
| 24VL014H/ST | TE | IDCCABLE-APR16A/AE16G/APR16A | 立即購買 |
