The H3LIS331DL is a low-power high-performance 3-axis linear accelerometer belonging to the “nano” family, with digital I²C/SPI serial interface standard output.

The device features ultra-low power operational modes that allow advanced power saving and smart sleep-to-wakeup functions.

The H3LIS331DL has dynamically user-selectable full scales of ±100g/±200g/±400g and it is capable of measuring accelerations with output data rates from 0.5 Hz to 1 kHz.

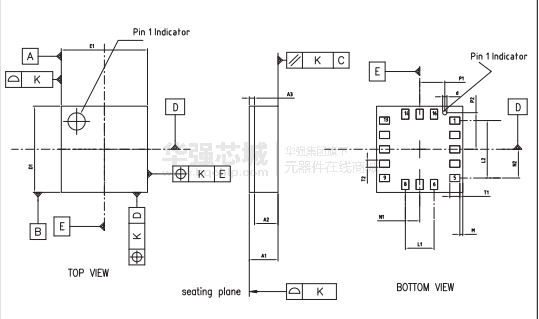

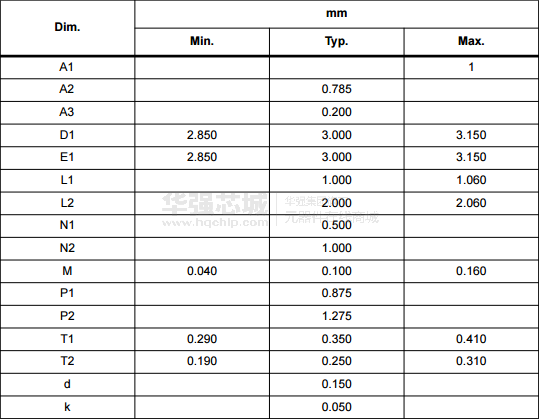

The H3LIS331DL is available in a small thin plastic land grid array package (LGA) and it is guaranteed to operate over an extended temperature range from -40 °C to +85 °C.

h3lis331dl是一個低功耗高性能三軸線性加速度計屬于“納米”家庭，數字I2C/SPI串行接口標準輸出。

該裝置的特點超低功率操作模式，讓先進的節能和智能休眠喚醒功能。

h3lis331dl動態用戶可選的全尺度的±100g /±200g /±400g，它能夠測量加速度的輸出數據速率從0.5赫茲到1千赫。

在一個小的h3lis331dl薄塑料柵格陣列（LGA）封裝，可它是保證工作在擴展的溫度范圍從- 40°C + 85°C.

Key Features

• Wide supply voltage, 2.16 V to 3.6 V

• Low-voltage compatible IOs, 1.8 V

• Ultra-low power consumption down to 10 μA in low-power mode

• ±100g/±200g/±400g dynamically selectable full scales

• I²C/SPI digital output interface

• 16-bit data output

• Sleep-to-wakeup function

• 10000 g high-shock survivability

• ECOPACK^?, RoHS and “Green” compliant

主要特點

寬電源電壓，2.16伏至3.6伏

低電壓兼容iOS 1.8 V

在低功耗模式下，超低功耗降至10

±100g /±200g /±400G全尺度的動態選擇

I2C或SPI數字輸出接口

16位數據輸出

睡眠喚醒功能

10000克高沖擊生存能力

?Ecopack，ROHS和“綠色”標準
