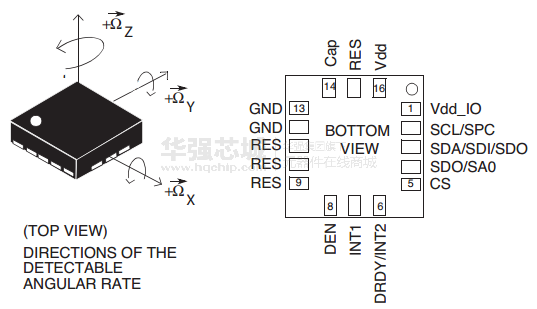

The L3GD20H is a low-power three-axis angular rate sensor.

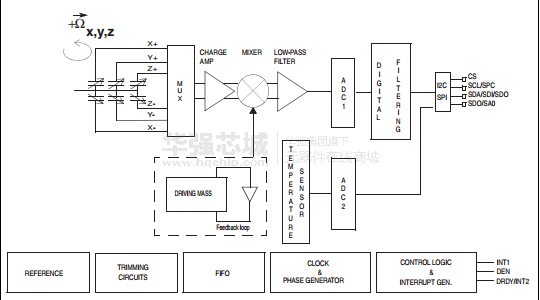

It includes a sensing element and an IC interface able to provide the measured angular rate to the external world through digital interface (I²C/SPI).

The sensing element is manufactured using a dedicated micromachining process developed by ST to produce inertial sensors and actuators on silicon wafers.

The IC interface is manufactured using a CMOS process that allows a high level of integration to design a dedicated circuit which is trimmed to better match the sensing element characteristics.

The L3GD20H has a full scale of ±245/±500/±2000 dps and is capable of measuring rates with a user selectable bandwidth.

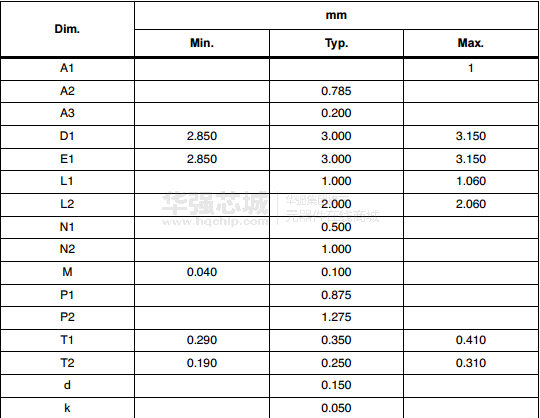

The L3GD20H is available in a plastic land grid array (LGA) package and can operate within a temperature range from -40 °C to +85 °C.

l3gd20h是一種低功耗三軸角速率傳感器。

它包括一個傳感元件和一個集成電路接口能夠通過數字接口到外部世界提供測量的角速率（I2C和SPI）。

使用專用的微機械加工工藝制造的傳感元件，由硅晶片制造的慣性傳感器和執行器。

IC接口是使用CMOS工藝，允許高層次的集成設計專用電路，修整，以更好地匹配傳感元件特性制造。

l3gd20h有一個全面的±245 / 500 / 2000±±DPS和能夠與用戶選擇的帶寬測量速率。

在一個塑料的l3gd20h柵格陣列（LGA）封裝，可在溫度范圍從-操作40°C + 85°C.

Key Features

• Wide supply voltage, 2.2 V to 3.6 V

• Wide extended operating temperature range (from -40 °C to 85 °C)

• Low voltage compatible IOs, 1.8 V

• Low power consumption

• Embedded power-down

• Sleep mode

• Fast turn-on and wake-up

• Three selectable full scales up to 2000 dps

• 16 bit rate value data output

• 8 bit temperature data output

• I2C/SPI digital output interface

• 2 dedicated lines (1 interrupt, 1 data ready)

• User enable integrated high-pass filters

• Embedded temperature sensor

• Embedded 32 levels of 16 bit data output FIFO

• High shock survivability

• ECOPACK? RoHS and “Green” compliant

主要特點

寬電源電壓，2.2伏至3.6伏

寬擴展工作溫度范圍（從40°到85°）

低電壓兼容iOS 1.8 V

低功耗

嵌入式電源

睡眠模式

快速開啟和喚醒

三個可選的全規模高達2000的DPS

16位速率值數據輸出

8位溫度數據輸出

I2C或SPI數字輸出接口

2專用線（1個中斷，1個數據準備）

用戶啟用集成高通濾波器

嵌入式溫度傳感器

嵌入式32級16位數據輸出FIFO

高沖擊生存能力

?Ecopack RoHS和“綠色”標準
