The Microchip LAN91C111 is designed to facilitate the implementation of a third generation of Fast Ethernet connectivity solutions for embedded applications. For this third generation of products, flexibility and integration dominate the design requirements. The LAN91C111 is a mixed signal Analog/Digital device that implements the MAC and PHY portion of the CSMA/CD protocol at 10 and 100 Mbps. The design will also minimize data throughput constraints utilizing a 32-bit, 16-bit or 8-bit bus Host interface in embedded applications.

The total internal memory FIFO buffer size is 8 Kbytes, which is the total chip storage for transmit and receive operations.

The Microchip LAN91C111 is software compatible with the LAN9000 family of products.

*Theservice is subject to?Microchip'sand requires a myMicrochip?account.

Features

  Single Chip Ethernet Controller

  Dual Speed - 10/100 Mbps

  Fully Supports Full Duplex Switched Ethernet

  Supports Burst Data Transfer

  8 Kbytes Internal Memory for Receive and Transmit FIFO Buffers

  Enhanced Power Management Features

  Optional Configuration via Serial EEPROM Interface

  Supports 8, 16 and 32 Bit CPU Accesses

  Internal 32 Bit Wide Data Path (into Packet Buffer Memory)

  Built-in Transparent Arbitration for Slave Sequential Access Architecture

  Flat MMU Architecture with Symmetric Transmit and Receive Structures and Queues

  3.3V Operation with 5V Tolerant I/O Buffers

  Single 25 MHz Reference Clock for Both PHY and MAC

  External 25 MHz Output Pin for an External PHY Supporting PHY's Physical Media

  Low Power CMOS Design

  Supports Multiple Embedded Processor Host Interfaces

  ARM

  SH

  Power PC

  Coldfire

  680X0, 683XX

  MIPS R3000

  3.3V MII (Media Independent Interface) MAC-PHY Interface Running at Nibble Rate

  MII Management Serial Interface

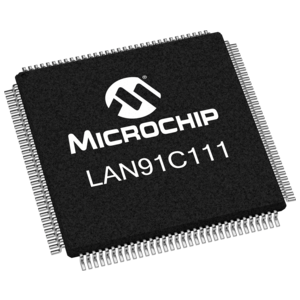

  128 Pin QFP RoHS compliant package

  128 Pin TQFP 1.0 mm height RoHS compliant package

  Commercial Temperature Range from 0°C to 70°C (LAN91C111)

  Industrial Temperature Range from -40°C to 85°C (LAN91C111i)

Network Interface

  Fully Integrated IEEE 802.3/802.3u - 100BASE-TX/10BASE-T Physical Layer

  Auto Negotiation: 10/100, Full/Half Duplex

  On Chip Wave Shaping - No External Filters Required

  Adaptive Equalizer

  Baseline Wander Correction

  LED Outputs (User Selectable - Up to Two LED Functions at One Time)

  Link

  Activity

  Full Duplex

  10/100

  Transmit

  Receive
