The STLM20 is a precision analog output temperature sensor for low current applications where maximizing battery life is important. It operates over a –55 °C to 130 °C (grade 7) or –40 °C to 85 °C (grade 9) temperature range. The power supply operating range is 2.4 V to 5.5 V. The maximum temperature accuracy of the STLM20 is ± 1.5 °C (±0.5 °C typ) at an ambient temperature of 25 °C and V_CCof 2.7 V. The temperature error increases linearly and reaches a maximum of ±2.5 °C at the temperature range extremes. The temperature range is affected by the power supply voltage. For the temperature grade 7 device, a power supply voltage of 2.7 V to 5.5 V, the temperature range extremes are +130 °C and –55 °C (decreasing the power supply voltage from 2.7 V to 2.4 V changes the low end of the operating temperature range from –55 °C to –30 °C, while the positive remains at +130 °C).

The STLM20 has a maximum quiescent supply current of 8 μA. Therefore, self-heating is negligible.

stlm20是精密模擬輸出溫度傳感器的低電流應用最大化電池的壽命是很重要的。它工作在一個- 55°C至130°C（7級）或- 40°C至85°C（9級）的溫度范圍。該電源的工作范圍為2.4 V至5.5 V的stlm20最高溫度精度±1.5°C（±0.5°C型）在環境溫度25°C和vccof 2.7 V的溫度誤差呈線性增加，在極端的溫度范圍內達到最大的±2.5°C。溫度范圍受供電電壓的影響。對于溫度級7級設備，電源電壓為2.7伏至5.5伏，溫度范圍為130°C和55°C（降低電源電壓從2.7伏至2.4伏的變化的工作溫度范圍從- 55攝氏度至- 30°C，而正保持在130°C）。

有一個最大的stlm20靜態電源電流8μA.因此，自加熱可以忽略不計

Key Features

• Precision analog voltage output temperature sensor

• ±1.5 °C maximum temperature accuracy at 25 °C (±0.5 °C typical)

• Ultra-low quiescent supply current: 4.8 μA (typ) and 8.0 μA (max)

• Operating voltage range: 2.4 V to 5.5 V

• Operating temperature range: –55 °C to 130 °C (grade 7) –40 °C to 85 °C (grade 9)

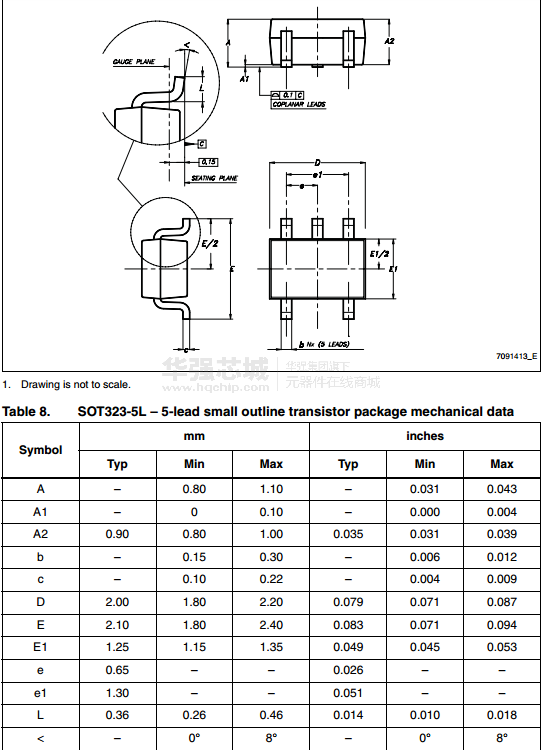

• SOT323-5L 5-lead package

• UDFN-4L 4-lead package

主要特點

精密模擬電壓輸出溫度傳感器

25°C最大溫度精度為1.5°（0.5°C）

超低靜態電流：4.8μ一（典型值）和8μ一（最大

工作電壓范圍：2.4伏至5.5伏

工作溫度范圍：- 55°～130°（7級）- 40°～85°（9級）

sot323-5l引腳封裝

udfn-4l 4包
