The SPBT2632C1A.AT2 is an easy to use Bluetooth module, compliant with Bluetooth v3.0.

The module provides complete RF platform in a small form factor.

The SPBT2632C1A.AT2 enables electronic devices with wireless connectivity, not requiring any RF experience or expertise for integration into the final product. The SPBT2632C1A.AT2 module, being a certified solution, optimizes the time to market of the final application.

The module is designed for maximum performance in a minimal space including fast speed UART and 16 general purpose I/O lines, several serial interface options, and up to 560 kbps transmission speed with SPP service active, 250 kbps with iAP service active.

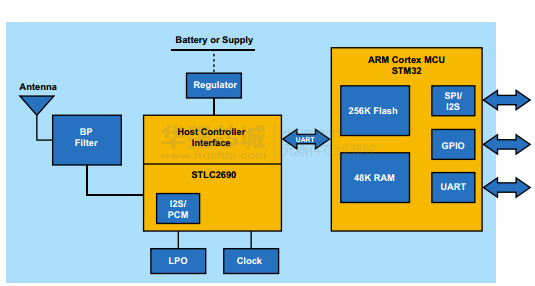

An optimized design allows the integration of a complete working Bluetooth modem, including antenna and LPO (low power oscillator), enabling low power mode capability in the minimum possible size.

The SPBT2632C1A.AT2 is a surface mount PCB module that provides fully embedded, ready-to-use Bluetooth wireless technology. The reprogrammable Flash memory contains embedded firmware for serial cable replacement using the Bluetooth SPP profile.

Embedded Bluetooth AT2 command firmware is a friendly interface, which realizes a simple control for cable replacement, enabling communication with most Bluetooth enabled devices, provided that the devices support SPP profile. The SPBT2532C1A.AT2, supporting iAP profile, provides communication with Android, smartphone and Apple? iOS Bluetooth enabled devices. An Apple authentication IC is required to exchange data with an Apple device or access an Apple device application. The AT2 FW includes the Bluetooth SPP profile capable of recognizing the Apple authentication chip.

Customers using the Apple authentication IC must register as developers, to become an Apple certified MFI member. License fees may apply, for additional information visit: http://developer.apple.com/programs/which-program/index.html.

Certified MFI developers developing electronic accessories that connect to an iPod?, iPhone?, and iPad? can gain access to technical documentation, hardware components, technical support and certification logos.

Customized firmware for peripheral device interaction, power optimization, security, and other proprietary features may be supported and can be ordered pre-loaded and configured.

spbt2632c1a.at2是一個易于使用的藍牙模塊，兼容藍牙v3.0。

該模塊提供完整的射頻平臺，在一個小的形式因素。

的spbt2632c1a.at2使電子設備的無線連接，不需要任何射頻經驗或?qū)I(yè)知識集成到最終產品。的spbt2632c1a.at2模塊，是一個認證的解決方案，優化時間的最終應用市場。

該模塊的設計，在最小的空間，包括高速UART和16個通用I/O線的最大性能，多種串行接口選項，高達560 kbps的傳輸速度與服務活動，250 kbps的IAP服務活動。

一個優化的設計允許一個完整的工作藍牙調制解調器的集成，包括天線和過氧化脂質（低功率振蕩器），使可能的最小尺寸的低功耗模式的能力。

是的spbt2632c1a.at2表面貼裝PCB模塊提供完全嵌入，可以使用藍牙無線技術。的可編程Flash存儲器包含串行電纜更換使用藍牙SPP型嵌入式固件。

嵌入式藍牙AT2命令固件是一個友好的界面，實現了一個簡單的控制電纜更換，使大多數藍牙通信功能的設備，但設備支持SPP簡介。的spbt2532c1a.at2，支持IAP的輪廓，提供通信與Android，蘋果iOS智能手機和?藍牙設備。一個蘋果認證集成電路需要交換數據與蘋果設備或訪問蘋果設備的應用。AT2 FW包括藍牙SPP型能識別蘋果認證芯片。

使用蘋果認證芯片的客戶必須注冊成為開發者，成為蘋果認證MFi成員。許可證費用可能適用，額外的信息請訪問：http://developer.apple.com/programs/which-program/index.html。

認證的MFI開發商開發電子配件連接到iPod，iPhone和iPad?，?，?可以訪問技術文檔、硬件組成、技術支持和認證標志。

定制的外設設備的相互作用，功率優化，安全性，和其他專有功能的固件可以支持，可以訂購預先加載和配置。

Key Features

• Bluetooth radio

• Fully embedded Bluetooth? v3.0 with profiles

• Class 1 module

• Complete RF ready module

• 128-bit encryption security

• Range up to 60 m LOS

• Integrated antenna

• Multipoint capability

• ST Micro Cortex-M3 microprocessor up to 72 MHz (256kb flash, 48kb RAM memory)

• Modem transmitter speed

• With SPP service active: 560kbps transmission speed

• General I/O

• 16 general purpose I/Os

• User interface

• AT2 command set (abSerial)

• Firmware upgrade over UART

• FCC and Bluetooth? qualified

• Single voltage supply: 2.5 V typical

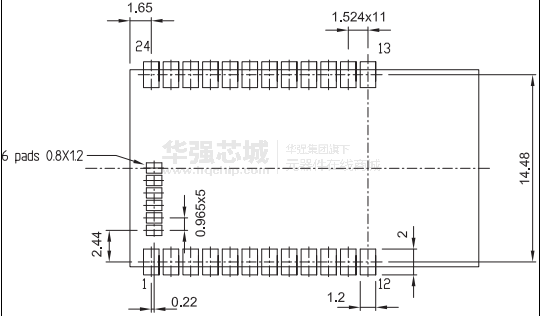

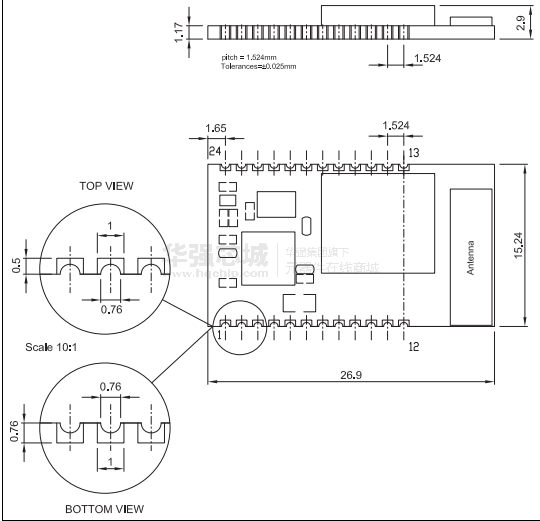

• Small form factor: 15 x 27 x 2.9 mm

• Operating temperature range: -40 °C to 85 °C

主要特點

藍牙收音機

完全嵌入式藍牙?V3.0的概況

1級模塊

完整的射頻模塊

128位加密安全

射程可達60米

集成天線

多點性能

ST Micro Cortex-M3微處理器的高達72兆赫（256KB FLASH，48KB RAM內存）

調制解調器發射機速度

與服務活動：560kbps傳輸速度

一般我/哦

16一般用途/操作系統

用戶界面

AT2的命令集（abserial）

固件升級通過UART

FCC和藍牙?合格

單電壓供電：2.5伏典型

小外形因素：15×27×2.9毫米

工作溫度范圍：- 40°為85°
