The STMicroelectronics STW82103B is an integrated down converter providing 8 dB of gain, 10.5 dB NF, and a very high input linearity by means of its passive mixer.

Embedding two wide band auto calibrating VCOs and an integer-N synthesizer, the STW82103B is suitable for both Rx and Tx requirements for Cellular infrastructure equipment.

The integrated RF balun and internal matching permit direct 50 ohm single-ended interface to RF port. The IF output is suitable for driving 200-ohm impedance filters.

By embedding a DAC with dual current output to drive an external PIN diode attenuator, the STW82103B replaces several costly discrete components and offers a significant footprint reduction.

The STW82103B device is designed with STMicroelectronics advanced 0.35 μm SiGe process. Its performance is specified over a -40 °C to +85 °C temperature range.

意法半導體的stw82103b是一個集成的下變頻器提供的增益8 dB，10.5 dB NF，并通過其無源混頻器的輸入線性度很高。

嵌入兩寬帶自動校準振蕩器和一個整數N合成器的stw82103b適用于RX和TX要求蜂窩基礎設施設備。

集成RF巴倫和內部匹配允許直接50歐姆單端接口的射頻端口。如果輸出是適用于驅動200歐姆阻抗濾波器。

通過嵌入一個DAC雙電流輸出驅動外部PIN二極管衰減器，其stw82103b取代一些昂貴的分立元件，提供了一個重大的減排。

的stw82103b裝置設計與意法半導體先進的0.35μm SiGe工藝。其性能在40°C至85°C的溫度范圍內。

Key Features

• High linearity:

• IIP3: +25 dBm

• 2FRF-2FLO spurious rejection: 80 dBc

• Noise figure:

• NF: 10.5 dB

• Conversion gain

• CG: 8 dB

• RF range: 2300 MHz to 2700 MHz

• Wide IF amplifier frequency range: 70 MHz to 400 MHz

• Integrated RF balun with internal matching

• Dual differential integrated VCOs with automatic center frequency calibration:

• LOA: 2200 to 2550 MHz

• LOB: 2500 to 3000 MHz

• Embedded integer-N synthesizer

• Dual modulus programmable prescaler (16/17 or 19/20)

• Programmable reference frequency divider (10 bits)

• Adjustable charge pump current

• Digital lock detector

• Excellent integrated phase noise

• Fast lock time: 150 μs

• Integrated DAC with dual current output

• Supply: 3.3 V and 5 V analog, 3.3 V digital

• Dual digital bus interface: SPI and I²C bus (fast mode) with 3 bit programmable address (1101A₂A₁A₀)

• Process: 0.35 μm BICMOS SiGe

• Operating temperature range -40 to +85^oC

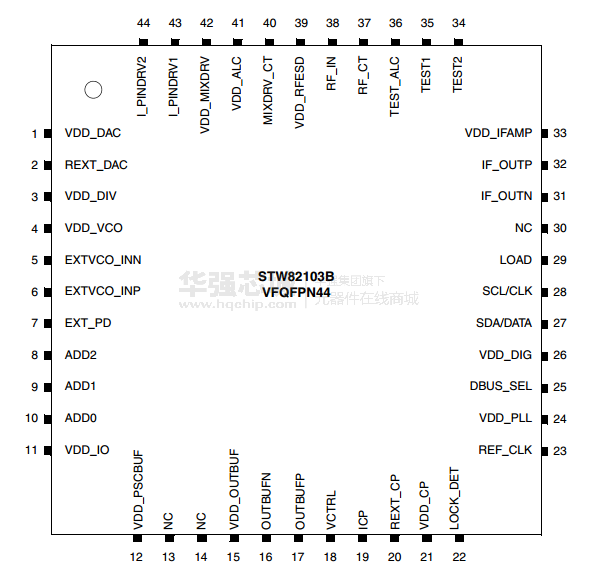

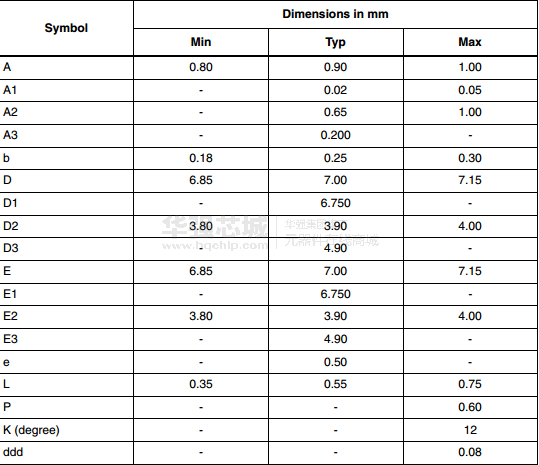

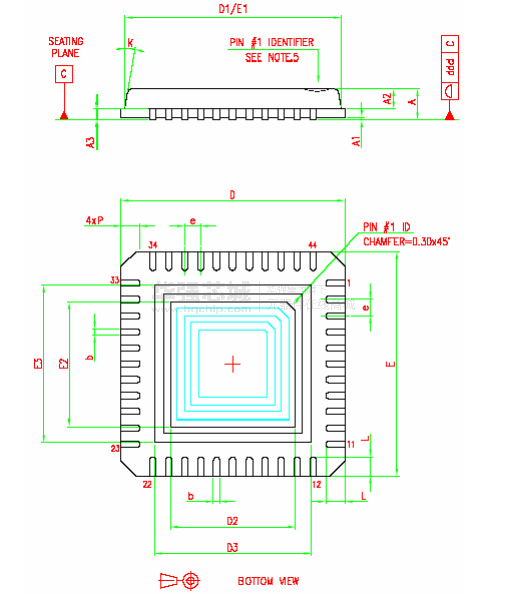

• 44-lead exposed pad VFQFPN package 7x7x1.0 mm

• Applications

• Cellular infrastructure equipment:

  IF sampling receiversDigital PA linearization loops

• Other wireless communication systems.
