The TC1270A, TC1271A and TC1270AN are cost-effective system supervisor circuits designed to monitor VCC in digital systems and provide a reset signal to the host processor when necessary. A manual reset input is provided to override the reset monitor, and is suitable for use as a push-button reset. The TC1270A has a push-pull, active-low RESET output, the TC1271A has a push-pull, active-high RESET output and TC1270AN has an open-drain, active-low RESET output.. All devices are available in industry standard pin-out and industry standard 4-Pin SOT-143 and 5-pin SOT23 packages. The TC1270A/70AN/71A are optimized to reject fast transient glitches on the VCC line and are suitable for all battery powered applications.

  Precision Voltage Monitor

  2.63V, 2.93V, 3.08V, 4.38V and 4.63V Trip Points (Typical)

  Manual Reset Input

  Reset Time-Out Delay:

  Standard: 280 ms (Typical)

  Optional: 2.19 ms, and 35 ms (Typical)

  Power Consumption

  No glitches on outputs during power-up

  Active Low Output Options:

  Push-Pull Output and Open-Drain Output

  Active High Output Option:

  Push-Pull Output

  Replacement for (Specification compatible with):

  TC1270, TC1271, TCM811, TCM812

  Fully Static Design

  Low-Voltage Operation (1.0V)

  ESD Protection:

  >=4 kV Human Body Model (HBM)

  >=400V Machine Model (MM)

  Extended (E) Temperature Range:

  -40°C to +125°C

  Package Options:

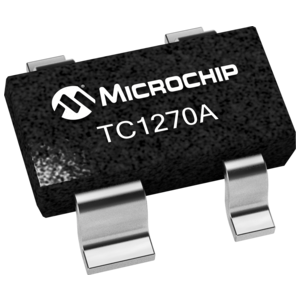

  4-Lead SOT-143

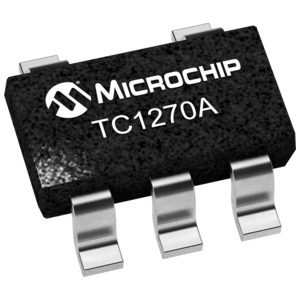

  5-Lead SOT-23

  Pb-free Device
