The TC4431/4432 are 30V CMOS buffer/drivers suitable for use in high-side driver applications. They will not latch up under any conditions within their power and voltage ratings. They can accept, without damage or logic upset, up to 300mA of reverse current (of either polarity) being forced back into their outputs. All terminals are fully protected against up to 4 kV of electrostatic discharge. Under-voltage lockout circuitry forces the output to a "low" state when the input supply voltage drops below 7V. For operation in lower voltages, disable the lockout and start-up circuit by grounding pin 3(LOCK DIS); for all other situations, pin 3 (LOCK DIS) should be left floating. The under-voltage lockout and start-up circuit gives brown out protection when driving MOSFETS.
Wide Operating Range: 4.5V to 30V
High Capacitive Load Drive Capability: 1000pF in 25nsec
Short Delay Times:
Low Supply Current?????With Logic "1" Input...............2.5mA?????With Logic "0" Input...............300μA
Low Output Impedance: 7? Typ.
Latch-Up Protected: Will Withstand > 0300mA
Reverse Current
ESD Protected: 4kV

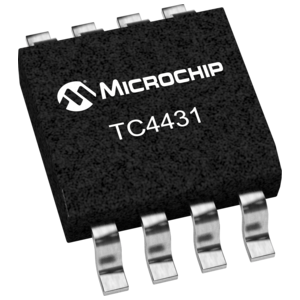

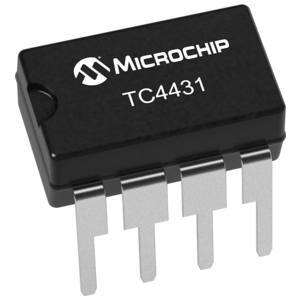

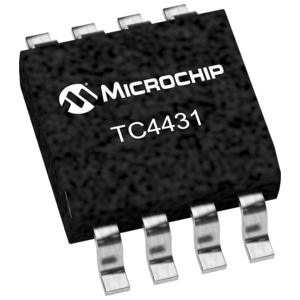

TC4431 封裝圖
TC4431 封裝圖
TC4431 封裝圖
TC4431 封裝圖
TC4431 封裝圖
TC4431 封裝圖
TC4431 封裝圖
TC4431 封裝圖
| 型號 | 制造商 | 描述 | 購買 |
|---|---|---|---|
| TC4431COA713 | - | - | 立即購買 |
| TC4431EPA | - | - | 立即購買 |
| TC4431VOA713 | Maxim | IC4.12VP-P15%SOT23-3 | 立即購買 |
| TC4431VOA | - | - | 立即購買 |
| TC4431EOA713 | Maxim | IC MPU SUPERVISOR SOT23-6 | 立即購買 |
| TC4431CPA | - | - | 立即購買 |
