The UVIS25 is a digital UV index sensor able to provide an accurate measurement of the ultraviolet radiation index (UVI) from sunlight. It includes a sensing element and a mixed signal ASIC to provide the UV index data through I2C and SPI interfaces.

A dedicated technology has been developed to achieve the greatest accuracy for UV index measurements.

The UVIS25 allows the measurement of the UV index, without the need for a dedicated algorithm to calculate the UV Index and without specific calibrations at the customer manufacturing line.

The device can be configured to generate interrupt events based on a threshold crossing or when a new set of data is generated. The event is available in a register as well as on a dedicated pin.

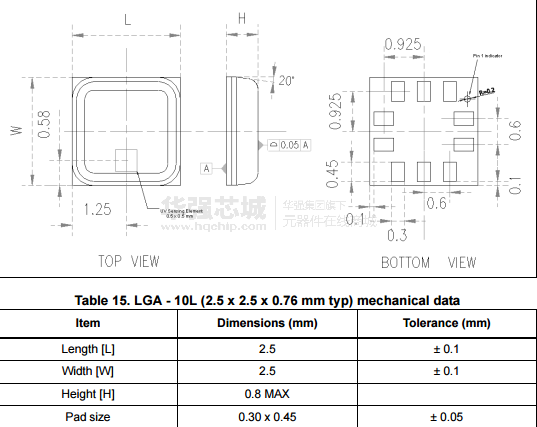

The UVIS25 is available in a full-mold LGA package (LGA). It is guaranteed to operate over a temperature range extending from -20 °C to +85 °C. The package is transparent to allow external solar radiation to reach the sensing element.

uvis25這是一個能夠提供紫外線指數準確的數字測量紫外線指數（UVI）從陽光傳感器。它包括一個傳感元件和混合信號ASIC提供紫外線指數數據通過I2C和SPI接口。

已經開發了一個專門的技術，以達到最大的精度為紫外指數測量。

uvis25這允許紫外線指數測量，沒有一個專門的算法來計算紫外線指數的需要，沒有特定的校準客戶生產線。

該設備可以被配置為基于閾值交叉或當一組新的數據產生時產生中斷事件。該事件可在一個寄存器，以及在一個專門的腳。

在一個完整的uvis25模具LGA封裝是可用的（LGA）。它是保證工作在溫度范圍從- 20°C延伸至85°C的封裝是透明的，以允許外部的太陽輻射到達傳感元件。

Key Features

• 0 - 15 UV index output range

• Resolution: UVI/16

• Active and power down modes

• Continuous reading at 1 Hz ODR / one shot mode

• Interrupt functions: Data Ready and UVI thresholds

• SPI and I2C interfaces

• Supply voltage: 1.7 to 3.6 V

• ECOPACK^?lead-free compliant

主要特點

15 - 0紫外線指數輸出范圍

分辨率：UVI / 16

主動和掉電模式

在1 Hz的ODR /拍攝模式連續閱讀

中斷功能：數據準備和UVI閾值

我2C接口SPI

電源電壓：1.7至3.6伏

?ECOPACK無鉛兼容
