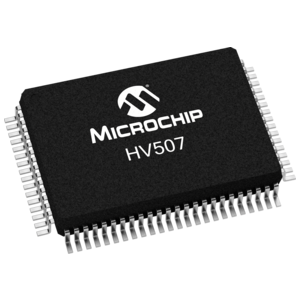

The HV507 is a low voltage serial to high voltage parallel converter with 64 push-pull outputs. This device has been designed for use as a printer driver for electrostatic applications. It can also be used in any application requiring multiple output, high voltage, low current sourcing and sinking capabilities. The device consists of a 64-bit shift register, 64 latches, and control logic to perform the polarity select and blanking of the outputs. A DIR pin controls the direction of data shift through the device. With DIR grounded, DIOA is Data-In and DIOB is Data-Out; data is shifted from HVOUT64 to HVOUT1. When DIR is at logic high, DIOB is Data-In and DIOA is Data-Out: data is then shifted from HVOUT1 to HVOUT64. Data is shifted through the shift register on the low to high transition of the clock. Data output buffers are provided for cascading devices. Operation of the shift register is not affected by the LE (latch enable), BL (blanking), or the POL(polarity) inputs. Transfer of data from the shift register to the latch occurs when the LE is high. The data in the latch is stored during LE transition from high to low.

  Processed with HVCMOS? technology

  Operating output voltages to 300V

  Low power level shifting from 5.0 to 300V

  Shift register speed: 8.0MHz @ VDD = 5.0V

  64 latched data outputs

  Output polarity and blanking

  CMOS compatible inputs

  Forward and reverse shifting options
