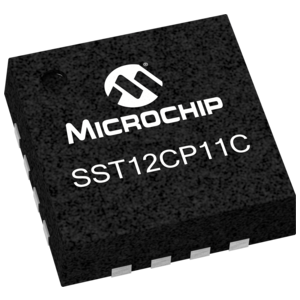

SST12CP11C is a high-power and high-gain power amplifier (PA) based on the highly-reliable InGaP/GaAs HBT technology.This PA can be easily configured for high-power applicationswith high power-added efficiency while operating over the 2.4-2.5 GHz frequency band. It typically provides 37 dB gain with 25% power-added efficiency @ POUT= 28 dBm for 802.11g.SST12CP11C has excellent linearity, typically 25 dBm at 3% EVM with 54 Mbps 802.11g operation while meeting 802.11g spectrum mask at 28 dBm. SST12CP11C also has a single-ended power detector which lowers the users’ cost for power control. SST12CP11C is offered in 16-contact UQFN package.

  High Gain:- Typically 37 dB gain across 2.4–2.5 GHz over temperature -20°C to +85°C

   High linear output power:?

  >30 dBm P1dB

  Meets 802.11g OFDM spectrum mask requirement up to 28 dBm

  Meets 802.11b ACPR requirement up to 28 dBm

  Typically 25 dBm with <3% EVM, 802.11g,54 Mbps

  Typically 24 dBm with <2.5% EVM, 802.11n,MCS7-HT20, 50% duty cycle

  Typically 24 dBm with <1.75% EVM, MCS9HT40,50% duty cycle

   Packages available- 16-contact UQFN (3mm x 3mm)- Pin-to-pin compatible with SST12CP11-Applications

   WLAN (IEEE 802.11b/g/n)

   WLAN 256 QAM

   AP router

   WiMax (IEEE 802.16e)

   Home RF

   Cordless phones

   2.4 GHz ISM wireless equipment
