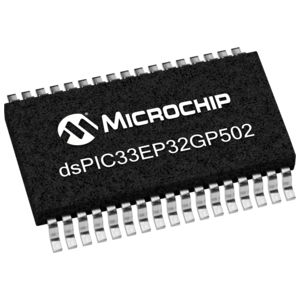

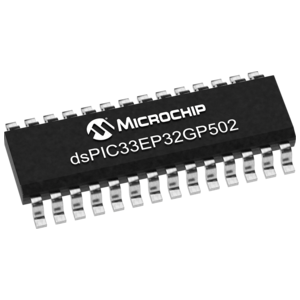

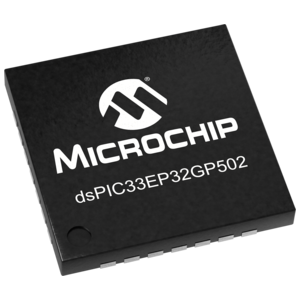

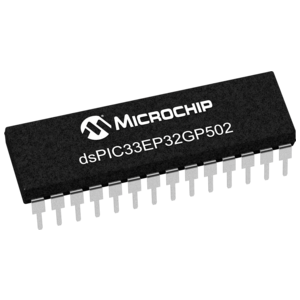

Microchip’s dsPIC33E general purpose DSC family features the highest speed 70 MIPS core with excellent performance and code density. It offers superior ADC performance, enhanced CAN communication, CTMU, Op Amps and Peripheral Trigger Generator (PTG) for high-end general purpose applications. These devices are available in various packages and with extended (125°C) temp option.

   3.0V to 3.6V, -40oC to +85oC, DC to 70 MIPS

   3.0V to 3.6V, -40oC to +125oC, DC to 60 MIPS

   Modified Harvard Architecture

   C Compiler Optimized Instruction Set

   16-bit Wide Data Path

   24-bit Wide Instructions

   16x16 Integer Multiply Operations

   32/16 and 16/16 Integer Divide Operations

   Two 40-bit Accumulators with Rounding and Saturation Options

   Single-Cycle Multiply and Accumulate

   Single-Cycle shifts for up to 40-bit Data

   16x16 Fractional Multiply/Divide Operations

   ADC module:- Configurable as 10-bit, 1.1 Msps with four S&H or12-bit, 500 ksps with one S&H

   Up to three Op amp/Comparators:- Op Amp direct connection to the ADC module- Additional dedicated comparator- Programmable references with 32 voltage points for comparators

   Charge Time Measurement Unit (CTMU):- Supports mTouch? capacitive touch sensing

   12 general purpose timers:- Five 16-bit and up to two 32-bit timers/counters- Four OC modules configurable as timers/counters- PTG module with two configurable timers/counters

   Four IC modules

   Peripheral Trigger Generator (PTG) for scheduling complex sequences

   Two UART modules (15 Mbps)

   Two 4-wire SPI modules (15 Mbps)

   ECAN? module (1 Mbaud) CAN 2.0B support

   Two I2C? modules (up to 1 Mbaud) with SMBus support

   PPS to allow function remap

   Programmable Cyclic Redundancy Check (CRC)

   4-channel DMA with user-selectable priority arbitration

   UART, SPI, ADC, ECAN, IC, OC, and Timers
